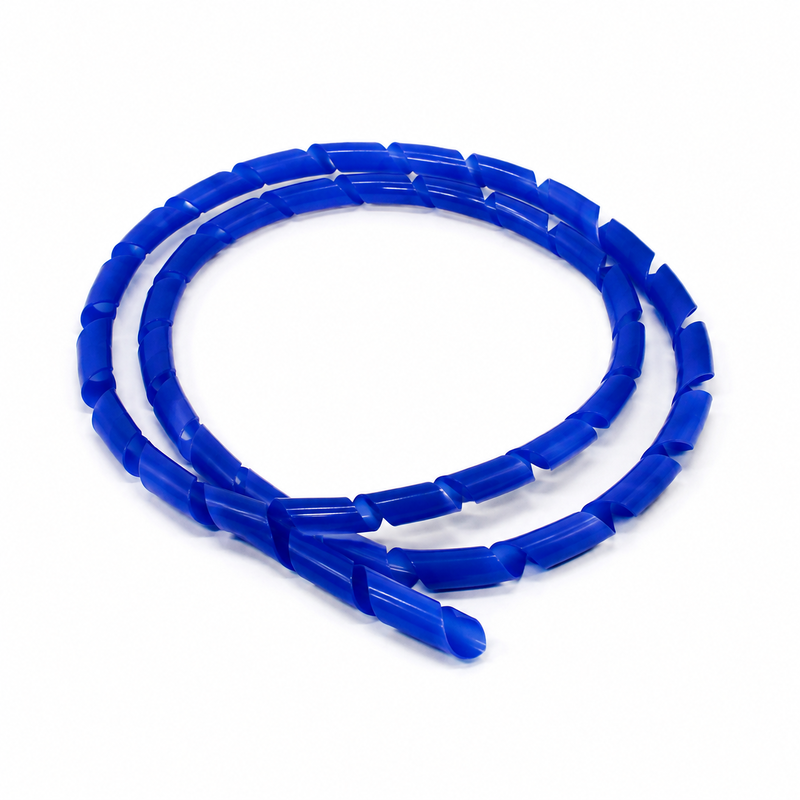

silicone spiral wrap tubing

Product Details

Place of Origin: CHINA

Brand Name: Logo Engraving, Custom Branding

Certification: UL 94, REACH, RoHS

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Price: DM FOR PRICE

Packaging Details: Individual PE bag and label packaging

Delivery Time: 5-8 work days

Payment Terms: T/T

Supply Ability: 5000 meters per day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                silicone spiral tubing wrap, flexible silicone tube wrap, spiral wrap tubing silicone


Material:	Silicone Rubber	Structure:	Hollow Spiral-cut Winding Tube
Hardness:	70 Shore A	Working Temperature:	-60°C To 250°C
Color:	Blue	Standard Packaging Length:	100 Meters Per Roll
Custom Service:	Color, Spiral Pitch And Cut Length

Material:	Silicone Rubber
Structure:	Hollow Spiral-cut Winding Tube
Hardness:	70 Shore A
Working Temperature:	-60°C To 250°C
Color:	Blue
Standard Packaging Length:	100 Meters Per Roll
Custom Service:	Color, Spiral Pitch And Cut Length

Product Description

Material Description

• Made from flexible silicone rubber

• Smooth surface with good flexibility and comfortable handling

• Open spiral design for easy installation and removal

• Standard hardness: 70 Shore A

• Standard color: blue

• Black, red, green, white, gray and other custom colors are available

• Standard roll length: 100 meters

• Cut-to-length service is available

Main Features

• Flexible spiral structure follows straight, curved and irregular cable routes

• Easy to install without disconnecting the cable or terminal

• Protects cables against abrasion, scratching and external contact

• Helps organize loose wires and reduce cable tangling

• Cables can branch out at any position along the wrap

• Good resistance to water, wear and aging

• Maintains flexibility over a wide temperature range

• Can be removed and reused when cable arrangements need to be changed

• Multiple sizes and colors available for cable identification

• Suitable for protecting individual cables or small cable bundles

Silicone Spiral Wrap Hardness

• Standard hardness: 70 Shore A

• Other hardness options can be customized upon request

Custom Size

• Inner diameter, outer diameter and spiral pitch can be customized

• Custom outer diameters below 20 mm are available

• Different spiral pitches can be produced for different cable sizes

• Cut-to-length service is available

• Custom colors can be matched according to customer requirements

• Samples can be produced for size and installation testing

Applications
• Optical fiber cables
• Fiber optic jumper cables and patch cords
• Communication cables
• Grounding wires
• Electrical wiring harnesses
• Data and signal cables
• Control and instrumentation cables
