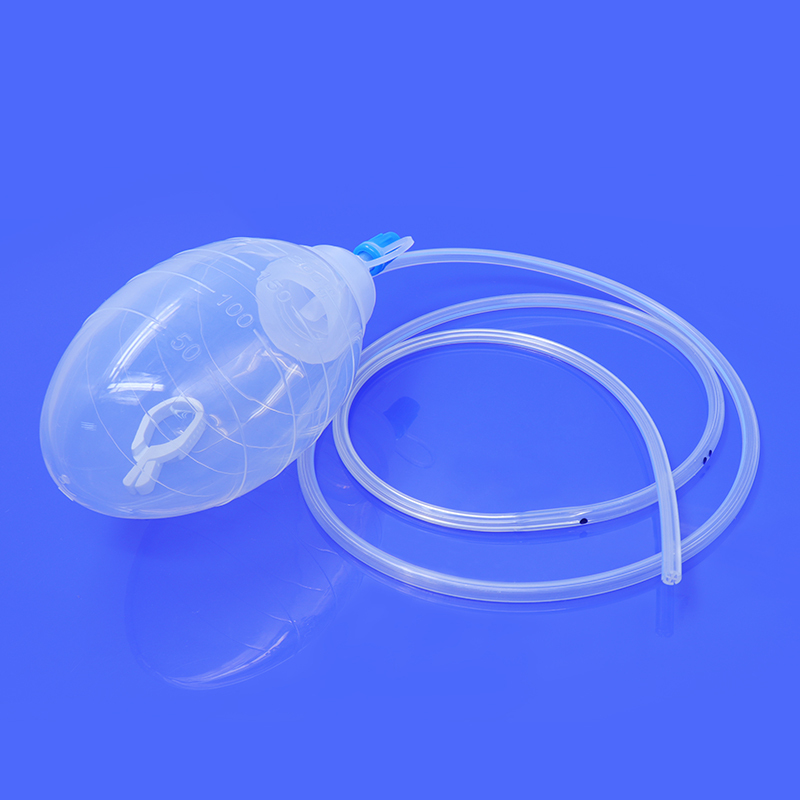

Medical Silicone Negative Pressure Drainage Bulb for Wound Exudate

Name: Medical Silicone Negative Pressure Drainage Bulb for Wound Exudate
Brand: Shenzhen Tenchy Silicone&Rubber Co.,Ltd
SKU: TCM-003
Price: 5,508.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: TENCHY

Certification: USP CLASS VI

Model Number: TCM-003

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: NEGOTIATBLE

Packaging Details: Individually sterile sealed

Delivery Time: 5-8 days

Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000 pcs per day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                medical silicone drainage bulb, negative pressure wound exudate bulb, silicone wound drainage tube


Product Description

Silicone Negative Pressure Drainage Bulb Product Description

This product is a single-use sterile drainage system composed of medical-grade silicone and polymer PVC components. It generates negative pressure through manual compression for closed drainage and collection of postoperative wound exudate, blood, and body cavity fluids. Its core advantage lies in self-controlled physical negative pressure, requiring no external power device, ensuring safe and convenient operation for multi-scenario clinical drainage needs.

Enhanced Core Features

Feature	Detailed Specifications
Biocompatibility	Compliant with ISO 10993 standards; non-cytotoxic, non-sensitizing, suitable for long-term tissue contact.
Precision Graduation	Laser-etched graduations (±2% accuracy) on bulb body; resistant to alcohol wiping; available in 20ml/50ml/100ml/200ml capacities.
Anti-Reflux Design	Silicone one-way valve (sealing pressure ≥0.02MPa) prevents fluid backflow; Luer-lock connector secures tubing.
Mechanical Performance	Elastic recovery >90% (ASTM D395); compressive strength ≥80kPa; withstands >200 compression cycles.
Innovative Tubing	Triple fracture grooves support 360° bending; fully open drainage channels enhance flow efficiency by 40% for viscous fluids.
Sterilization Safety	EO sterilization; residue <2μg/g (ISO 10993-7); sterile barrier packaging with 3-year shelf life.

Upgraded Specifications

Parameter Category	Technical Standards
Models	A1 (Fixed Capacity) / A2 (Drainable) / B1 (High-Capacity) / B2 (Pediatric)
Material Composition	Bulb: Platinum-cured silicone (USP Class VI) Tubing/Accessories: Medical PVC (DEHP-Free)
Capacity Options	80ml/150ml/200ml/400ml (±5% volume tolerance)
Negative Pressure	Initial: -50±10mmHg Sustained: -15~-25mmHg (>85% stability within 8 hours)
Connection Standard	ISO 80369 Luer connector (with anti-reflux valve); compatible with 8Fr-24Fr catheters.
Physical Resistance	Corrosion resistance: No degradation in pH 2-12 solutions (72h immersion) Temperature: -20℃~+50℃ (storage) / 0℃~40℃ (use)
Certifications	CE 0476 (MDD 93/42/EEC), FDA 510(k), ISO 13485:2016 Complies with YY/T 0466.1 medical device labeling
Packaging	1 unit/sterile pouch, 20 units/inner box, 200 units/master carton
Clinical Indications	Postoperative wound drainage (breast/thyroid/joint replacement), traumatic hematoma, abscess drainage, ascites.
Contraindications	Actively bleeding wounds, uncontrolled infected wounds, tumor resection areas (requires physician evaluation).

Medical Silicone Negative Pressure Drainage Bulb for Wound Exudate 0

Medical Silicone Negative Pressure Drainage Bulb for Wound Exudate 1
