Food Grade High Temperature Resistance Polyester Braided Reinforced Silicone Hose for Industrial Fluid Transfer

Name: Food Grade High Temperature Resistance Polyester Braided Reinforced Silicone Hose for Industrial Fluid Transfer
Brand: Shenzhen Tenchy Silicone&Rubber Co.,Ltd
SKU: TRT-001
Price: 5,508.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: TENCHY

Certification: FDA,LFGB,

Model Number: TRT-001

Payment & Shipping Terms

Minimum Order Quantity: 100 meters

Price: NEGOTIABLE

Packaging Details: PE/Reel/Carton

Delivery Time: 5-8 work days

Payment Terms: D/A,D/P,Western Union,T/T

Supply Ability: 8,000 meters per day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Food Grade Silicone Hose, High Temperature Resistance Silicone Hose, Polyester Braided Reinforcement Silicone Hose


Product Name:	Polyester Braided Reinforced Silicone Hose	Grade:	Food,Medical,Rohs
Certification:	ROHS,FDA,ISO9001,LFGB,SGS	Material:	Silicone
Fabric Material:	Polyester	Hardness(Cover):	60 ± 5 Shore A
Hardness(Liner):	70 ±5shore A	Working Temperature:	-40 ℃ To +180℃
Size:	Customizable	Thickness:	Customizable
Color:	Customizable	Surface:	Smooth Surface
Sample:	Available

Product Name:	Polyester Braided Reinforced Silicone Hose
Grade:	Food,Medical,Rohs
Certification:	ROHS,FDA,ISO9001,LFGB,SGS
Material:	Silicone
Fabric Material:	Polyester
Hardness(Cover):	60 ± 5 Shore A
Hardness(Liner):	70 ±5shore A
Working Temperature:	-40 ℃ To +180℃
Size:	Customizable
Thickness:	Customizable
Color:	Customizable
Surface:	Smooth Surface
Sample:	Available

Product Description

Food Grade Industrial High-Temperature High-Pressure Polyester Braided Reinforced Silicone Hose

Our Polyester Braided Reinforced Silicone Hose delivers excellent flexibility, durability, and high-temperature resistance, making it ideal for food, beverage, pharmaceutical, and industrial fluid transfer applications. The polyester braid reinforcement ensures the hose maintains its shape under pressure, resists kinks, and prevents collapse.

Key Features

100% food-grade silicone (FDA & LFGB certified)
Polyester braided reinforcement for strength and pressure resistance
Wide operating temperature: -40℃ to 180℃
Flexible, kink-resistant, and durable construction
Suitable for high-pressure liquid and gas transfer

Technical Specifications

ID (mm)	OD (mm)	Min. Bend Radius (inch)	Working Pressure (Bar)	Burst Pressure (Bar)
3.18	9.00	0.5 (1/2″)	13.8	41.4
5.00	11.00	1.0 (1″)	11.7	35.1
6.35	13.20	1.5 (1-1/2″)	9.3	27.9
9.52	16.60	2.25 (2-1/4″)	7.0	21.0
12.70	20.30	2.75 (2-3/4″)	5.7	17.1
15.87	24.50	3.25 (3-1/4″)	4.3	12.9
22.20	27.90	5.75 (5-3/4″)	3.3	9.9
25.40	34.50	6.25 (6-1/4″)	3.0	9.0
31.75	40.80	8.00	2.3	6.9

Applications

Food & Beverage Lines

Pharmaceutical & Laboratory

Industrial Cooling & Heating

Air & Gas Lines

Chemical Processing

Performance Advantages

Smooth inner surface for low-friction flow

Polyester braid prevents expansion under pressure

High temperature and chemical resistance

Long service life with easy installation in tight spaces

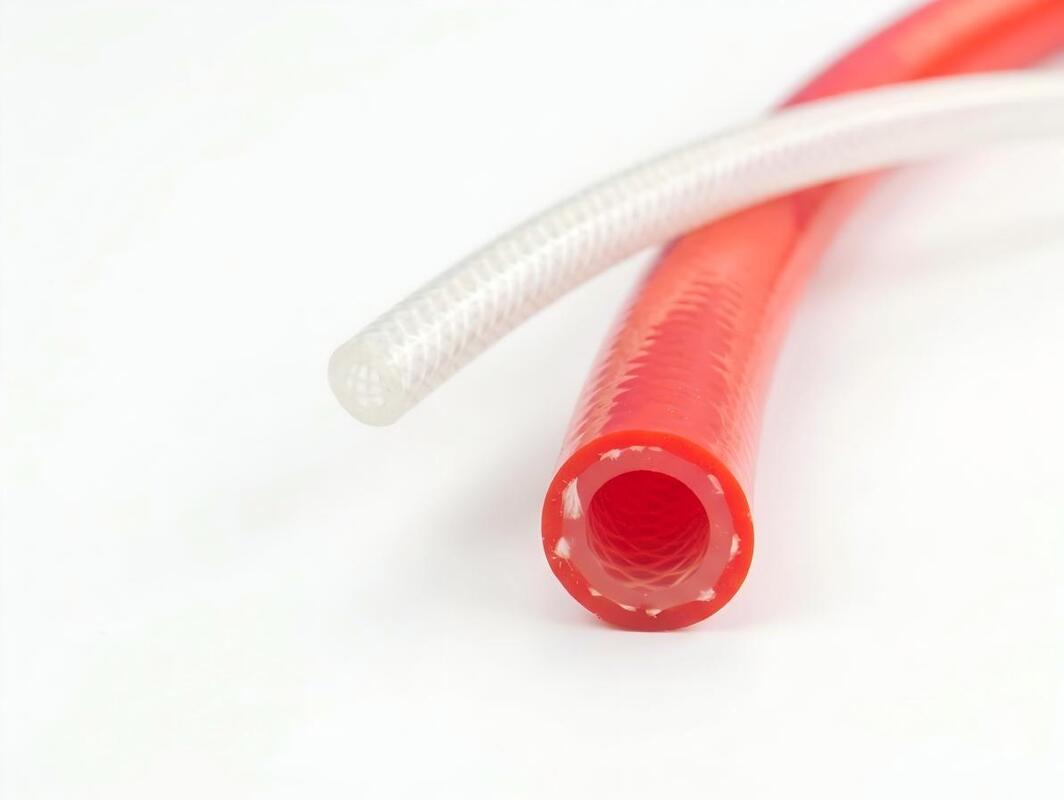

Food Grade High Temperature Resistance Polyester Braided Reinforced Silicone Hose for Industrial Fluid Transfer 0
