4 Ply Fabric SS Wire Reinforced Silicone Braided Hose ID 12mm
Product Details
| Material | 100% Pure Silicone | Reinforced Material | Polyster + Stainless Steel |
|---|---|---|---|
| Color | Translucent, Grey | ID Range | 12-100mm |
| Application | Food Machine, Medical Machine, Beverage Transforming | Maximum Operating Temperature | 180°C (356 ℉) |
| Character | 4-Ply Fabric Braided | Model No. | ZC-BST096 |
| Hardness Liner | 70±5A | Tensile Strength | >8.5MPa |
| Elongation At Break | >320% | Tear Resistance (tear Strength) | >25KN/m |
| Britle Temperature | -40°C (-40 ℉) | ||
| High Light | SS Wire Reinforced Silicone Braided Hose,4 Ply Fabric Silicone Braided Hose,ID 12mm Silicone Braided Hose |
||
Product Description

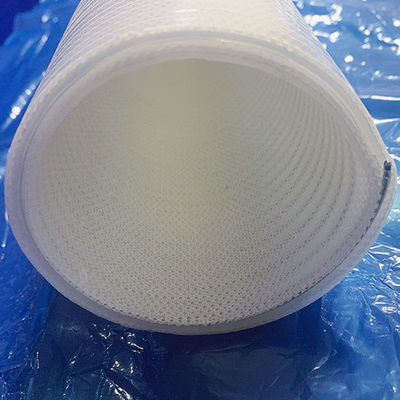

4-Ply Fabric and SS Wire Reinforced Food Contact Safe Silicone Tubing
| Basic information | |
| Manufacturing technique | silicone extrusion + steel wire and fabric weaving |
| Fabric | Four layers of polyester fabric |
| Steel wire | single-layer 304/316 stainless steel wire,wire interval 6mm |
| Inner wall | transparent and smooth |
| Outer wall | transparent and smooth(other colors available) |
| Color | Clear or customized |
| Diameter range | 1.0-102.0mm |
| Diameter tolerance | ±0.5mm |
| Standard length | 6 meters/bag, can be customized under 6 meters |
| Temperature range | -40°C~220°C |
| Sample period | 1-2 days(5-8 days for customized tubing) |
| Daily capacity | 1000 meters |
| MOQ | 30 meteres |
The sanitary silicone hose can effectively prevent the growth of bacteria, and the tough polyester fabric with steel wire greatly increase the working pressure and help maintain the flow of fluid. The steel wire silicone hose has good flexibility, durability, chemical resistance and heat resistance, and the spiral steel wire is grounded to discharge static electricity, It is the ideal hose for pharmacy, biotechnology, and food&beverage industry.
The hose clamps is made of 316L stainless steel, and is crimped and molded according to the requirements of the SZR (no dead angle and no residue at the connection) standard. We equip customers with SMS, DIN, flange and sanitary chuck series of joints, and we can also customize other types of joints according to customer requirements.
Applications
Mainly used in special environment operations, used in the connection of some food and medical equipment, as well as biotechnology, cosmetics, food, dairy products, can be used for liquid medicine delivery, vaccines, pharmaceutical preparations and other industries.
Packaging
Max Length for MXSV: Max 6 meters for all of sizes
We have a professional cutting machine that can cut various products with shorter lengths according to customer requirements. Then use OPP bags and standard cartons.
FAQ
Q1: Why choose Tenchy silicone?
We are committed to the silicone rubber sealing field. Our factory has 11 years of experience and has accumulated rich experience in silicone rubber processing and manufacturing to provide customers with the best silicone rubber sealing solutions and products.
Q2. How we ensure product quality?
100% inspection during production. Our products are certified with FDA, LFGB, RoHs certifications.
Q3: How long is the sample lead time?
For existing product, it takes 1-2 days; If you want your design, it may take 3-5 days depends on your design.
Q4: How to Custom-made?
If you have a new product drawing or sample, we can customize according to them. We have Quick feedback on your needs and rapid mold opening.
Q5: Can I get the sample?
Yes, we can provide stock samples for free, but a little sample charge for custom design, new customers are expected to pay for the delivery cost, the sample charge will be deducted from the payment for formal order.
