Soft Flexible Silicone Heat Shrink Tubing Waterproof Flame Resistant
Product Details
| Product Name | Silicone Heat Shrink Tubing | Temperature Range | Common -50℃ To 200℃, Special -60℃ To 260℃ |
|---|---|---|---|
| Hardness | 30-80A | Size | Customized |
| Certification | Reach, RoHs, UV94 | Performance | Ozone, UV, Aging Resistant |
| Material | Silicone | Color | Red, Black, White, Grey |
| High Light | Flame Resistant Heat Shrink Tubing,Waterproof Soft Flexible Rubber Tubing,Heat Shrink Flexible Silicone Tubing |
||
Product Description

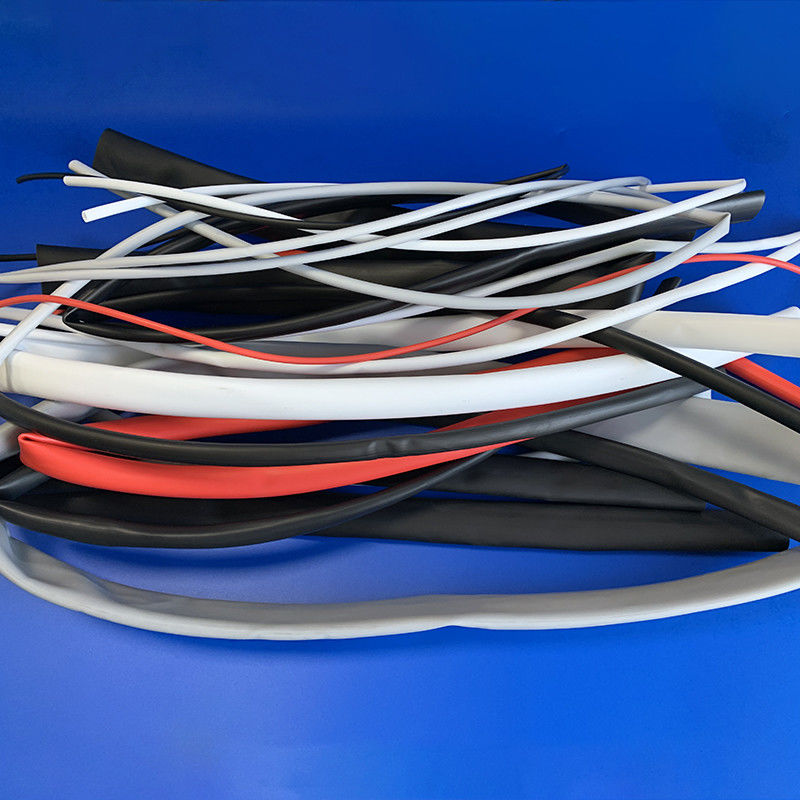

Soft Flexible Silicone Heat Shrink Tubing Waterproof Flame Resistant
High-Performance Silicone Heat Shrink Tubing
Introducing our high-quality Premium Silicone Heat Shrink Tubing, the perfect solution for electrical insulation, mechanical protection, and strain relief applications. Our silicone heat shrink tubing is designed with durability, flexibility, and performance in mind, making it suitable for various industries and applications.
Features:
● High-quality material: Made from 100% pure silicone rubber, our heat shrink tubing is designed to provide excellent electrical insulation, mechanical protection, and strain relief.
● Superior flexibility: Thanks to its high elasticity, our silicone heat shrink tubing can be easily applied to various objects with irregular shapes and contours.
● Wide temperature range: With a temperature range of -60°C to 200°C (-76°F to 392°F), our tubing is suitable for use in both extreme cold and hot environments.
● Excellent chemical resistance: Our silicone heat shrink tubing is resistant to a wide range of chemicals, making it perfect for use in harsh environments.
● UV and ozone resistant: With built-in UV and ozone resistance, our tubing is designed to withstand prolonged exposure to sunlight and other environmental factors.
● RoHS compliant: Our product meets the standards set by the Restriction of Hazardous Substances Directive, ensuring it is safe and environmentally friendly.
Applications:
Our Premium Silicone Heat Shrink Tubing is suitable for various industries, including automotive, aerospace, electronics, and telecommunications. It is perfect for applications such as:
Electrical insulation
Wire harnessing
Strain relief
Environmental protection
Cable and connector protection
Component identification
Installation
Minimum shrink temperature: 135°C [275°F]
Minimum full recovery temperature: 175°C [347°F]
Operating Temperature Range -75°C to 200°C [-103°F to 392°F]
Commonly used sizes of silicone heat shrink tubing
|
Model |
Inner Diameter (Before Shrinking) |
Inner Diameter (After Shrinking) |
Wall Thickness (After Shrinking) |
Shrink Ratio |
|
HST-02 |
2 mm |
1 mm |
0.5 mm |
2:1 |
|
HST-03 |
3 mm |
1.5 mm |
0.5 mm |
2:1 |
|
HST-04 |
4 mm |
2 mm |
0.5 mm |
2:1 |
|
HST-06 |
6 mm |
3 mm |
0.5 mm |
2:1 |
|
HST-08 |
8 mm |
4 mm |
0.7 mm |
2:1 |
|
HST-10 |
10 mm |
5 mm |
0.7 mm |
2:1 |
|
HST-12 |
12 mm |
6 mm |
0.7 mm |
2:1 |
|
HST-14 |
14 mm |
7 mm |
0.7 mm |
2:1 |
|
HST-16 |
16 mm |
8 mm |
0.7 mm |
2:1 |
|
HST-20 |
20 mm |
10 mm |
0.8 mm |
2:1 |
Frequent Asked Questions
1.Q: Can the tubing be customized in color?
A: Yes, we offer custom color options for bulk orders. Please contact us for more information.
2.Q: How do I apply the silicone heat shrink tubing?
A: You can use a heat gun, oven, or hot air source to evenly apply heat, causing the tubing to shrink and fit snugly over the object.
3.Q: What is the shrink ratio of this tubing?
A: Our silicone heat shrink tubing has a 2:1 shrink ratio.
4.Q: Is this tubing flame retardant?
A: Yes, our silicone heat shrink tubing is self-extinguishing and flame retardant.
5.Q: Can I use this tubing for underwater applications?
A: Yes, our silicone heat shrink tubing is suitable for underwater applications due to its excellent water resistance.
6.Q: How long does it take for the tubing to shrink completely?
A: The shrink time depends on the heat source and the size of the tubing, but it usually takes a few seconds to a minute for the tubing to shrink completely.
7.Q: Can I use this tubing for high-voltage applications?
A: Our silicone heat shrink tubing is suitable for low to medium voltage applications. For high-voltage applications, we recommend consulting with a professional to ensure safety.
8.Q: Is this tubing resistant to oils and fuels?
A: Yes, our silicone heat shrink tubing has excellent resistance to oils, fuels, and other common chemicals.
9.Q: Can I order a sample before placing a bulk order?
A: Yes, we offer sample orders for testing and evaluation purposes. Please contact us for more information.
