Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
  • Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications
Place of Origin Shenzhen, China
Brand Name Tenchy
Certification FDA, LFGB, UL, ROSH, SGS
Model Number TS-SG009
Minimum Order Quantity 1000pcs
Packaging Details PE bag and standard master
Delivery Time 3-7 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per day
Product Details
Features Flexibility, Portable, Detachable Material Silicone, Food-Grade, BPA-Free
Color Clear, Transparent, Black, Blue, Red, Custom Size Customized
Hardness 40-80 ShoreA Temperature Resistance -40℃-230℃
Shape Round, Square, Custom Application Sealing, Insulation, Cushioning
Compliance FDA, LFGB, RoHS, Custom Production Process Die-Cut
UV Resistance UV-resistant Flexibility High
Anti-Algae Yes Non-Toxic Yes
Ozone Resistance Excellent Durability High
Tear Resistance Good Warranty Limited, Lifetime
Product Description

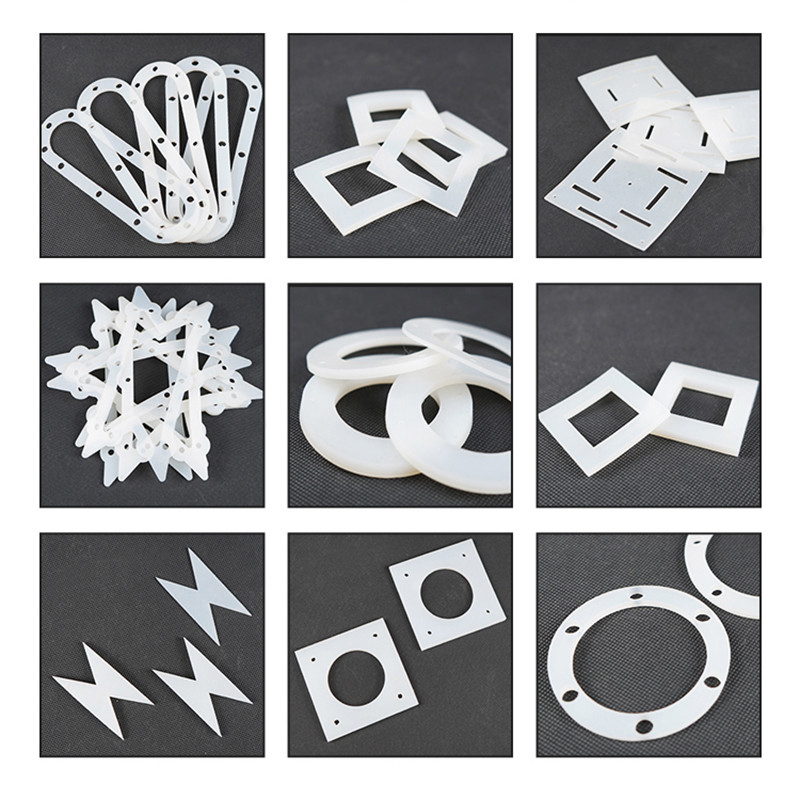

Die-Cut Silicone Rubber Gaskets

Item Number: TS-SG009
Brand Name: Tenchy
Place of Origin: Guangdong, China
Material: 100% Pure Silicone Raw Material
Size: Customized
Shape: Round, Square, Custom
Hardness: 40A-80A
Feature: Flexibility, Portable, Detachable
Temperature: -40℃-230℃
Application: Sealing, Insulation, Cushioning
Certification: FDA, LFGB, UL, ROSH, SGS
Application: 1. Automotive: Engine, fuel system, and transmission seals
2. Electronics: Enclosures and component protection
3. Industrial Machinery: Pumps, compressors, and heat exchangers
4. Aerospace: Aircraft seals for extreme conditions
5. Medical Equipment: Clean, chemical-resistant seals
6. Food and Beverage: Hygienic sealing for processing equipment
7. Pharmaceutical: High-temperature and chemical-resistant gaskets
8. Marine: Seals for engines and equipment
9. HVAC Systems: Sealing and thermal insulation
10. Construction: Window seals and weatherproofing





Product Description



1. High Temperature Resistance: Withstands temperatures from -60°C to +250°C, suitable for various high-heat environments.

2. Chemical Resistance: Resists a wide range of chemicals, including acids, bases, and solvents, ensuring longevity and reliability.

3. Flexibility: Provides excellent flexibility and compressibility, adapting to irregular surfaces and ensuring a tight seal.

4. Durability: Offers long-lasting performance with resistance to aging, ozone, and UV exposure, preventing degradation over time.

5. Customizable: Available in various shapes, sizes, and thicknesses to meet specific application needs.

6. Non-Toxic and Food Safe: Complies with food safety standards for applications in the food and beverage industry.

7. Waterproof and Airtight: Ensures effective sealing against water, air, and dust ingress, enhancing protection and performance.

8. High Compression Set Resistance: Maintains its sealing properties under prolonged pressure and temperature exposure.

9. Electrical Insulation: Provides excellent electrical insulation, making it suitable for use in electronic and electrical applications.

10. Easy to Fabricate: Die-cut for precise dimensions and shapes, allowing for quick and accurate installation in diverse applications.



Product Parameters





Hardness: 40-80 Shore A
Density: 1.18±0.05g/cm³
Tensile strength:  >8.0 MPa
Elongation at break: >400%
Working temperature: -40°C to 230°C
Compression set:  (150ºC/22h) 35%
Tear resistance (tear strength), Die B:  >20KN/m



Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 0

Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 1

Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 2

Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 3

Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 4



Certifications



Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 5



Payment/Shipping



Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 6



About us



Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 7



Our Advantages





Custom Die-Cut High Temperature Pressure Silicone Rubber Gasket Seals 3M Self-Adhesive for Mechanical Applications 8



FAQ:



1. Why choose us?

We are silicone solution provider, we provide solutions to our customers in waterproof, equipment sealing, high temp & high pressure applications, besides, we also provide industrial-grade, food-grade, and medical-grade silicone to our customers with professional services under reasonable & competitive price.

2. Which shipping way is available?

(1) By sea or air to your requested ports

(2) By express (DHL,UPS,FEDEX,TNT,EMS etc)to your door. We will provide tracking number ASAP after the goods shipping out.

3. Which Payment way is ok?

T/T, AT, PayPal, Western Union, L/C, e-checking, as per your demand.

4. How about your service?

Our mission is to solve the problems encountered in silicone rubber for our customers, and provide highest quality and fair price silicone rubber products worldwide. We hope that we shall become your best ideal business partner and reliable friend! Our goal is becoming the friends of our real & potential customers, and our friends can be found everywhere in the world!
