Clasp Sheath silicone foam pipe insulation For Electrical Cable
Place of Origin China
Brand Name Tenchy
Certification Reach, RoHs
Model Number TSIT-02
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag+Standard Carton
Delivery Time 5-10 days
Payment Terms T/T, Western Union
Supply Ability 10,000 meters per day
Product Details
Product Name Silicone Insulation Tube For Power Cables Production Process Silicone Extrusion
Raw Material 100% Pure Silicone Durameter Shore 40-80A
Color Multi-color Available Size Customized
Temperature Range -60℃ To 200℃ Sample Period 4 Working Days (3-5 Days For Customized Types)
High Light

Clasp Sheath Silicone Foam Pipe Insulation

,

Multi Color Silicone Foam Pipe Insulation

,

Electrical Cable Silicone Rubber Sealing Strip

Product Description

Clasp Sheath Silicone Foam Pipe Insulation For Electrical Cable



Silicone Insulation Tube for Power Cables Electrical Cable Clasp Sheath​



The Power Cable Silicone Insulation Tube is expertly engineered to serve as a superior electrical insulation solution in power transmission and distribution systems. Crafted from high-quality silicone rubber, these insulation tubes offer exceptional electrical insulation, robust mechanical strength, and outstanding resistance to weathering and UV radiation.

The innovative design of the electrical cable clasp sheath ensures effortless installation and disassembly, facilitating hassle-free maintenance and inspection. Compatible with both 10kV and 35kV voltage levels, this product accommodates a broad array of power cables.

Features:

  • Premium silicone rubber construction for unparalleled electrical insulation

  • Exceptional mechanical strength and longevity

  • Resilient to weathering, UV radiation, and temperature variations

  • User-friendly installation and disassembly for seamless maintenance and inspection

  • Suitable for 10kV and 35kV voltage levels

Application: Power cable insulation for 10kV and 35kV voltage levels



Specification

Parameter

Unit

10kV

35kV

Material

-

Silicone rubber

Silicone rubber

Rated Voltage

kV

10

35

Dielectric Strength

kV/mm

≥ 25

≥ 25

Tensile Strength

MPa

≥ 10

≥ 10

Elongation at Break

%

≥ 400

≥ 400

Tear Strength

kN/m

≥ 20

≥ 20

Volume Resistivity

Ω·m

≥ 1 x 10^14

≥ 1 x 10^14

Water Absorption

%

≤ 0.5

≤ 0.5

Continuous Operating Temp

°C

-50 to +180

-50 to +180

Flammability

-

UL 94 V-0 or better

UL 94 V-0 or better

Inner Diameter

mm

Customizable based on cable

Customizable based on cable

Wall Thickness

mm

Customizable based on voltage

Customizable based on voltage

Length

m

Customizable based on demand

Customizable based on demand



Please note that the dimensions, such as inner diameter and wall thickness, can be customized according to the specific requirements of the power cables being used.



Specification for Application

Cable cross-sectional area (mm²)

Aluminum stranded wire outer diameter (mm)

Inner diameter of protective sheath (mm)

16mm2

5.10mm

6mm

25mm2

6.45mm

8mm

35mm²

7.50mm

10mm

50mm2

9.00mm

12mm

70mm2

10.80mm

14mm

95mm2

12.50mm

16mm

120mm2

14.25mm

18mm

150mm2

15.75mm

20mm

185mm²

17.50mm

22mm

240mm2

20.00mm

24mm

300mm2

22.40mm

28mm

400mm2

25.90mm

32mm

500mm²

29.12mm

35mm

630mm2

32.67mm

38mm

800mm2

35.70mm

42mm

1000mm²

38.20mm

45mm

1200mm²

43.40mm

50mm

1440mm2

47.80mm

52mm

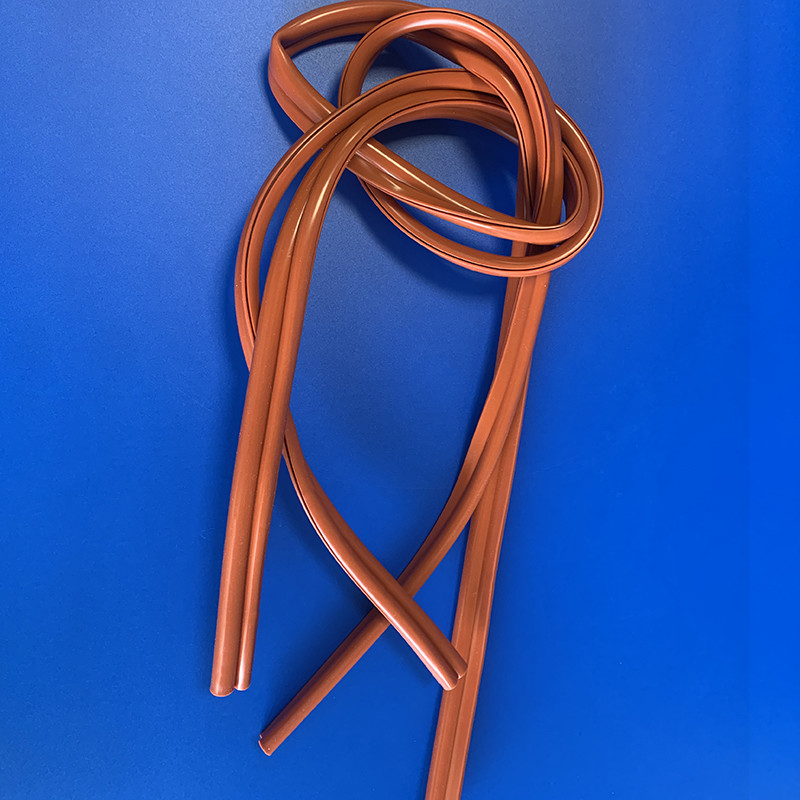

Clasp Sheath silicone foam pipe insulation For Electrical Cable 0

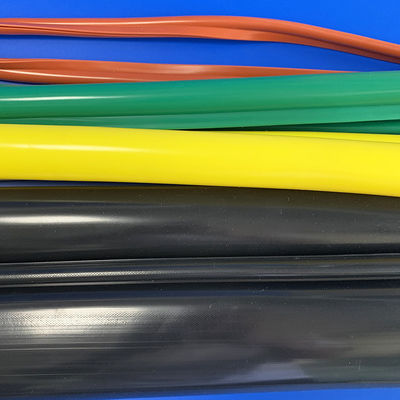

Clasp Sheath silicone foam pipe insulation For Electrical Cable 1

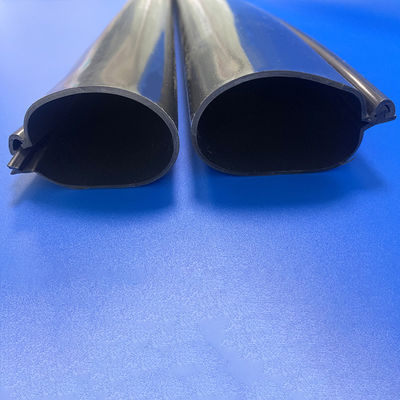

Clasp Sheath silicone foam pipe insulation For Electrical Cable 2



Frequently Asked Questions

1. Q: What is a Silicone Insulation Tube for Power Cables?

A: A Silicone Insulation Tube is a protective covering made of silicone material designed to insulate and protect power cables from various environmental factors such as moisture, heat, and abrasion. It helps to maintain the efficiency and longevity of cables.



2. Q: What are the key benefits of using a Silicone Insulation Tube?

A: Some of the main benefits of using a Silicone Insulation Tube include superior heat resistance, excellent electrical insulation properties, high flexibility, resistance to UV radiation, moisture, and chemicals, and long service life.



3. Q: What are the typical applications of Silicone Insulation Tubes for Power Cables?

A: Silicone Insulation Tubes are commonly used in a wide range of applications, such as power transmission and distribution systems, industrial and commercial electrical installations, automotive wiring, aerospace and aviation, and electronic devices.



4. Q: Can Silicone Insulation Tubes be customized according to specific requirements?

A: Yes, Silicone Insulation Tubes can be customized in terms of size, thickness, and color to suit different requirements and applications. Please consult with the manufacturer or supplier for customization options.



5. Q: How does the Silicone Insulation Tube handle extreme temperatures?

A: Silicone Insulation Tubes are known for their excellent heat resistance, withstanding temperatures ranging from -50°C to 200°C (-58°F to 392°F). This makes them suitable for various high-temperature applications.



6. Q: Are Silicone Insulation Tubes environmentally friendly?

A: Yes, Silicone Insulation Tubes are generally considered environmentally friendly due to their long service life, recyclability, and non-toxic nature.



7. Q: How should Silicone Insulation Tubes be stored and maintained? A: Silicone Insulation Tubes should be stored in a cool, dry place away from direct sunlight and heat sources. They should also be kept away from sharp objects to prevent damage. Regular inspection and cleaning are recommended to ensure optimal performance and longevity.



8. Q: How do I properly install a Silicone Insulation Tube on a power cable?

A: To install a Silicone Insulation Tube, first, ensure the cable is clean and free of any debris. Cut the tube to the desired length, slide it over the cable, and position it correctly. Using the bandage to ensuring it conforms to the cable's shape without damaging the cable.



9. Q: Can I use a Silicone Insulation Tube for outdoor applications?

A: Yes, Silicone Insulation Tubes are suitable for outdoor applications due to their resistance to UV radiation, moisture, and various environmental factors. However, it is crucial to choose the appropriate insulation tube for the specific application.
