Product Name | Silicone Insulation Tube For Power Cables | Production Process | Silicone Extrusion |
---|---|---|---|
Raw Material | 100% Pure Silicone | Durameter | Shore 40-80A |
Color | Multi-color Available | Size | Customized |
Temperature Range | -60℃ To 200℃ | Sample Period | 4 Working Days (3-5 Days For Customized Types) |
High Light | RoHs Silicone Seal Strip,100% Pure Silicone Seal Strip,Reach Silicone Insulation Tube |
100% Pure Silicone Seal Strip Insulation Tube For Power Cables

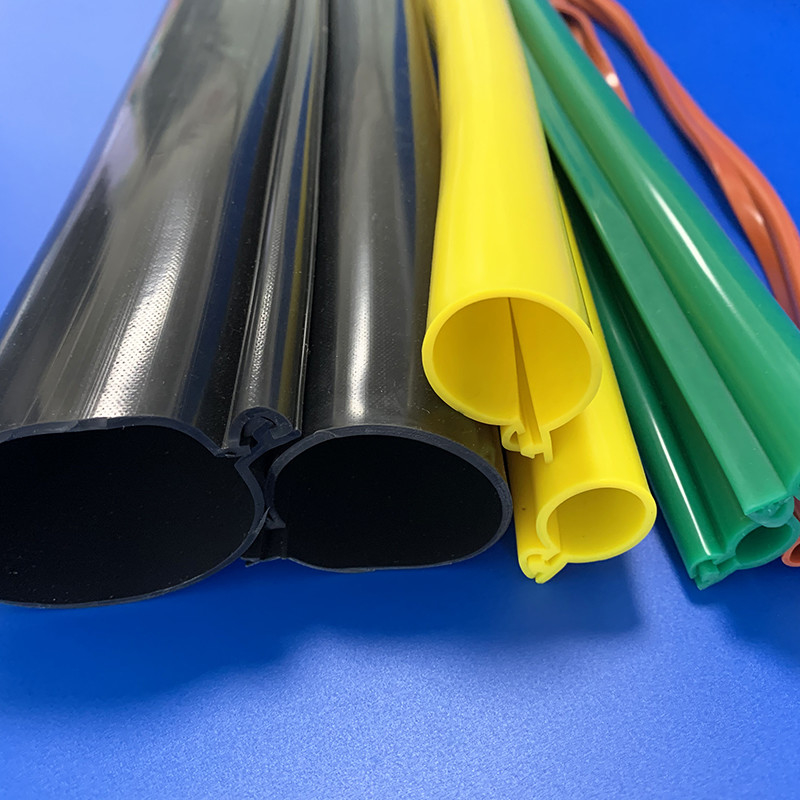

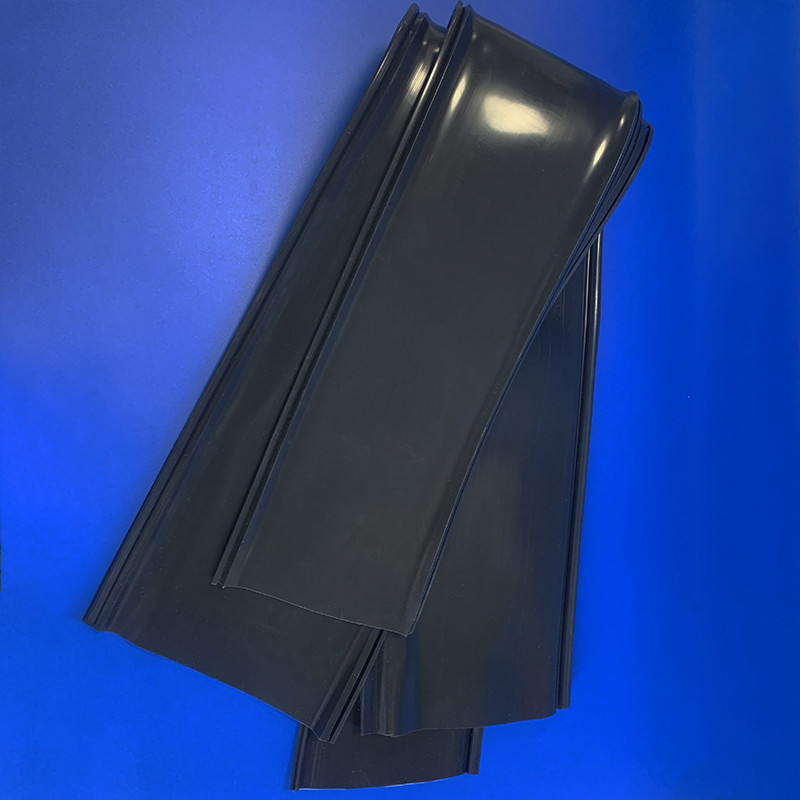

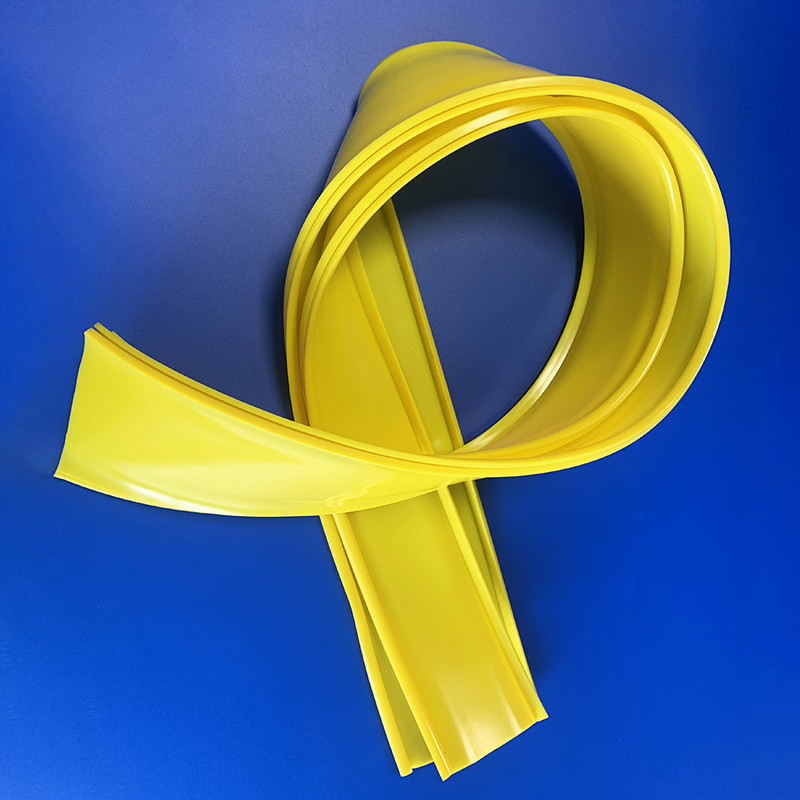

Silicone Insulation Tube for Power Cables Electrical Cable Clasp Sheath
The Silicone Insulation Tube for Power Cables is designed for use as an electrical insulation solution in power transmission and distribution systems. These insulation tubes are made of high-quality silicone rubber, providing excellent electrical insulation, mechanical strength, and resistance to weathering and UV radiation.
The unique design of the electrical cable clasp sheath enables easy installation and disassembly for maintenance and inspection purposes. The product is available for 10kV and 35kV voltage levels, ensuring compatibility with a wide range of power cables.
Features:
·High-quality silicone rubber material for superior electrical insulation
·Excellent mechanical strength and durability
·Resistance to weathering, UV radiation, and temperature fluctuations
·Easy installation and disassembly for maintenance and inspection
·Available for 10kV and 35kV voltage levels
Application: Power cable insulation for 10kV and 35kV voltage levels Material: Silicone rubber
Product Description:
Specification
Parameter |
Unit |
10kV |
35kV |
Material |
- |
Silicone rubber |
Silicone rubber |
Rated Voltage |
kV |
10 |
35 |
Dielectric Strength |
kV/mm |
≥ 25 |
≥ 25 |
Tensile Strength |
MPa |
≥ 10 |
≥ 10 |
Elongation at Break |
% |
≥ 400 |
≥ 400 |
Tear Strength |
kN/m |
≥ 20 |
≥ 20 |
Volume Resistivity |
Ω·m |
≥ 1 x 10^14 |
≥ 1 x 10^14 |
Water Absorption |
% |
≤ 0.5 |
≤ 0.5 |
Continuous Operating Temp |
°C |
-50 to +180 |
-50 to +180 |
Flammability |
- |
UL 94 V-0 or better |
UL 94 V-0 or better |
Inner Diameter |
mm |
Customizable based on cable |
Customizable based on cable |
Wall Thickness |
mm |
Customizable based on voltage |
Customizable based on voltage |
Length |
m |
Customizable based on demand |
Customizable based on demand |
Please note that the dimensions, such as inner diameter and wall thickness, can be customized according to the specific requirements of the power cables being used.
Specification for Application |
||
Cable cross-sectional area (mm²) |
Aluminum stranded wire outer diameter (mm) |
Inner diameter of protective sheath (mm) |
16mm2 |
5.10mm |
6mm |
25mm2 |
6.45mm |
8mm |
35mm² |
7.50mm |
10mm |
50mm2 |
9.00mm |
12mm |
70mm2 |
10.80mm |
14mm |
95mm2 |
12.50mm |
16mm |
120mm2 |
14.25mm |
18mm |
150mm2 |
15.75mm |
20mm |
185mm² |
17.50mm |
22mm |
240mm2 |
20.00mm |
24mm |
300mm2 |
22.40mm |
28mm |
400mm2 |
25.90mm |
32mm |
500mm² |
29.12mm |
35mm |
630mm2 |
32.67mm |
38mm |
800mm2 |
35.70mm |
42mm |
1000mm² |
38.20mm |
45mm |
1200mm² |
43.40mm |
50mm |
1440mm2 |
47.80mm |
52mm |
Frequently Asked Questions
1. Q: What is a Silicone Insulation Tube for Power Cables?
A: A Silicone Insulation Tube is a protective covering made of silicone material designed to insulate and protect power cables from various environmental factors such as moisture, heat, and abrasion. It helps to maintain the efficiency and longevity of cables.
2. Q: What are the key benefits of using a Silicone Insulation Tube?
A: Some of the main benefits of using a Silicone Insulation Tube include superior heat resistance, excellent electrical insulation properties, high flexibility, resistance to UV radiation, moisture, and chemicals, and long service life.
3. Q: What are the typical applications of Silicone Insulation Tubes for Power Cables?
A: Silicone Insulation Tubes are commonly used in a wide range of applications, such as power transmission and distribution systems, industrial and commercial electrical installations, automotive wiring, aerospace and aviation, and electronic devices.
4. Q: Can Silicone Insulation Tubes be customized according to specific requirements?
A: Yes, Silicone Insulation Tubes can be customized in terms of size, thickness, and color to suit different requirements and applications. Please consult with the manufacturer or supplier for customization options.
5. Q: How does the Silicone Insulation Tube handle extreme temperatures?
A: Silicone Insulation Tubes are known for their excellent heat resistance, withstanding temperatures ranging from -50°C to 200°C (-58°F to 392°F). This makes them suitable for various high-temperature applications.
6. Q: Are Silicone Insulation Tubes environmentally friendly?
A: Yes, Silicone Insulation Tubes are generally considered environmentally friendly due to their long service life, recyclability, and non-toxic nature.
7. Q: How should Silicone Insulation Tubes be stored and maintained? A: Silicone Insulation Tubes should be stored in a cool, dry place away from direct sunlight and heat sources. They should also be kept away from sharp objects to prevent damage. Regular inspection and cleaning are recommended to ensure optimal performance and longevity.
8. Q: How do I properly install a Silicone Insulation Tube on a power cable?
A: To install a Silicone Insulation Tube, first, ensure the cable is clean and free of any debris. Cut the tube to the desired length, slide it over the cable, and position it correctly. Using the bandage to ensuring it conforms to the cable's shape without damaging the cable.
9. Q: Can I use a Silicone Insulation Tube for outdoor applications?
A: Yes, Silicone Insulation Tubes are suitable for outdoor applications due to their resistance to UV radiation, moisture, and various environmental factors. However, it is crucial to choose the appropriate insulation tube for the specific application.
