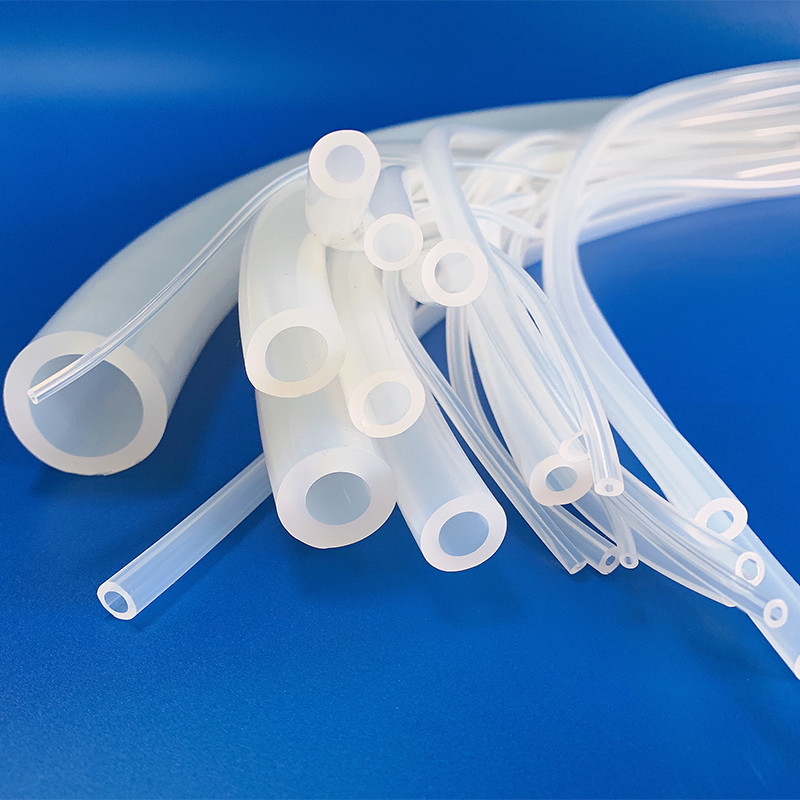

Flexible Silicone Rubber Tubing Food Grade For Water Dispenser And Purifier
Place of Origin Shenzhen
Brand Name Tenchy
Certification FDA, LFGB
Model Number SILI-699
Minimum Order Quantity 500 meter
Packaging Details PP bags + Carton
Delivery Time 7 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 10000 meters/day
Product Details
Manufactuer Shenzhen Tenchy Silicone And Rubber Co.,Ltd Color White, Transparent
Hardness 50 Shore A~70 Shore A Material Silicone Rubber
Heat Resistant -60℃~200℃ Density 1.12g/cm³
MOQ 200 Meters Place Of Origin Shenzhen
High Light

Water Dispenser Silicone Rubber Tubing

,

Flexible Silicone Rubber Tubing

,

Water Purifier Flexible Silicone Hose

Product Description

Food Grade Silicone Tubing



Silicone rubbers differ from other elastomer in their wide and unique property range. These properties result from their special chemical structure, consisting of an inorganic backbone with organic groups.



The silicone tubing food grade belongs to environmental protection silicone. It is non-toxic, odorless, with high transparency. Because the edible silicone has been refined and sterilized, it can mix with food and medicine according to the demand to keep the food dry. It can be eaten together with the food without any harm to people.



Our silicone products provide excellent high temperature resistance combined with low-temperature flexibility, chemical inertness, water resistance, dielectric properties and excellent resistance to environmental influences and weathering.



Material Description

● All food grade silicone products belong to environmental protection silicone. It is non-toxic, odorless, with high transparency

● Good resistance to weak acidic and alkaline solutions



Certifications

● FDA 21 CFR 177.2600

● LFGB



Main Features

● High transparency, odorless, tasteless and non-toxic, free of BPA

● Excellent hot air resistance up to +200℃

● Excellent resistance to cold up to -60℃

● Excellent resistance to aging and weathering (UV, ozone)

● Meet FDA, RoHS requirements

● Placed at normal temperature, it does not turn yellow, spray frost, spit white, or fade



Silicone Tube Hardness

● Shore 50A to 70A



Custom Size

● The wall thickness of the product can be 0.25mm to 20mm

● Minimum size 0.5*1.2mm

● Cut-to-Length service

● Minimum order quantity: 1000 meters

● Fast sample delivery, 2-3 days finish new samples



Physical Properties
Hardness: 50±5A
Density: 1.18±0.05g/cm³
Tensile strength : >8.0 MPa
Elongation at break: >380%
Working temperature: -60°C to 200°C
Compression set: 8% (150℃/22h)
Tear resistance (tear strength), Die B: >20KN/m



Flexible Silicone Rubber Tubing Food Grade For Water Dispenser And Purifier 0



Food Grade Silicone Tubing
Item # Specification Tolerance Available Length per coil (meter)
ID(mm) OD(mm) Thickness
(mm)
for ID for Thickness
ST-12 1.0 2.0 0.5 ±0.10 ±0.05 30, 50, 100
ST-1525 1.5 2.5 0.5 ±0.10 ±0.05 30, 50, 100
ST-23 2.0 3.0 0.5 ±0.10 ±0.05 30, 50, 100
ST-24 2.0 4.0 1.0 ±0.10 ±0.05 30, 50, 100
ST-35 3.0 5.0 1.0 ±0.10 ±0.10 30, 50, 100
ST-47 4.0 7.0 1.5 ±0.10 ±0.10 30, 50, 100
ST-58 5.0 8.0 1.5 ±0.15 ±0.10 30, 50, 100
ST-69 6.0 9.0 1.5 ±0.15 ±0.10 30, 50, 100
ST-710 7.0 10.0 1.5 ±0.15 ±0.10 30, 50, 100
ST-812 8.0 12.0 2.0 ±0.20 ±0.10 30, 50, 100
ST-913 9.0 13.0 2.0 ±0.2 ±0.10 30, 50, 100
ST-1014 10.0 14.0 2.0 ±0.2 ±0.10 30, 50, 100
ST-1216 12.0 16.0 2.0 ±0.2 ±0.10 30, 50
ST-1420 14.0 20.0 3.0 ±0.25 ±0.15 30, 50
ST-1621 16.0 21.0 2.5 ±0.25 ±0.15 30, 50
ST-1824 18.0 24.0 3.0 ±0.3 ±0.15 30, 50
ST-2026 20.0 26.0 3.0 ±0.4 ±0.20 30, 50
ST-2226 22.0 26.0 2.0 ±0.4 ±0.2 30, 50
ST-2531 25.0 31.0 3.0 ±0.6 ±0.2 30, 50
ST-3038 30.0 38.0 4.0 ±0.6 ±0.3 30, 50
ST-3240 32.0 40.0 4.0 ±0.6 ±0.4 30, 50
ST-3844 38.0 44.0 3.0 ±0.6 ±0.4 30, 50



Our Capability and Service

Tenchy can provide fast samples service. Our factory has thousands of extrusion toolings, and we can quickly customize all kinds of silicone tubing and extrusion products for customers. With more than 13 years' experience in the silicone industry, we will help our customers find Various solutions and provide fast samples service.



Application

● Beverage & Dairy handling tubing

● Food processing equipment

● Water purification tubing

● Household appliance

● Brewary&Wine equipment

● Food grade straws

● Sterile Bottle Filling



Packaging

● Coiled tubing

● Cut to Length and individual PE bag&Label packing

● Customized cartons or bags can be provided in large quantities
