Home > products > Flexible Silicone Tubing > Medical / Food Grade Silicone Rubber Tubing 0.1mm 0.15mm 0.2mm Wall Thickness

Medical / Food Grade Silicone Rubber Tubing 0.1mm 0.15mm 0.2mm Wall Thickness

Product Details

Place of Origin: Shenzhen

Brand Name: Tnechy

Certification: FDA, RoHS

Model Number: SILI-169

Payment & Shipping Terms

Minimum Order Quantity: 500

Delivery Time: 7 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000 meters / day

Get Best Price
Product Details
Highlight:

Medical Silicone Rubber Tubing 0.15mm

,

Flexible Transparent Silicone Rubber Tubing

,

0.2mm Food Grade Flexible Silicone Tubing

Manufactuer:
Tenchy Silicone Rubber Co.,Ltd
Material:
Silicone Rubber
Color:
Transparent
Heat Resistant:
-40℃~200℃
Wall Thickness:
0.1mm, 0.15mm, 0.2mm
ID Range:
0.5mm~3mm
Available Lengths:
Max 50m, Standard 30m/reel
Place Of Origin:
Shenzhen, China
Manufactuer:
Tenchy Silicone Rubber Co.,Ltd
Material:
Silicone Rubber
Color:
Transparent
Heat Resistant:
-40℃~200℃
Wall Thickness:
0.1mm, 0.15mm, 0.2mm
ID Range:
0.5mm~3mm
Available Lengths:
Max 50m, Standard 30m/reel
Place Of Origin:
Shenzhen, China
Product Description

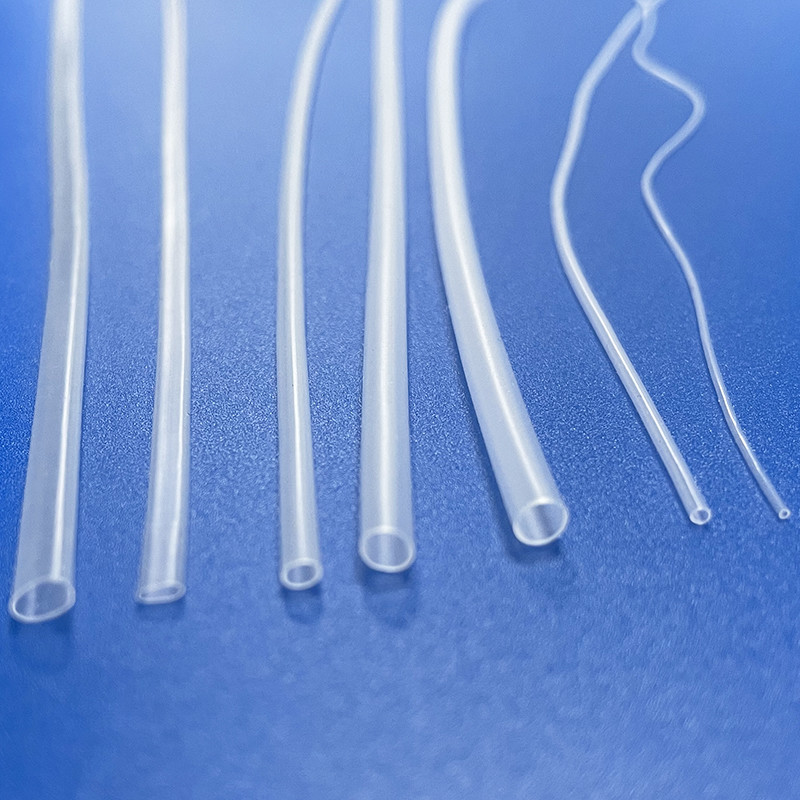

Thin Wall Silicone Rubber Tubing



Our extrusion process is unrivaled. We can vary inside diameter, outside diameter or wall thickness to exact specifications, as well as layer cross-sections from many types of materials to create products with unique features.



In addition, we can manufacture very small extrusions, under 0.02 inch / 5 mm in diameter, and very thin wall tubing from thickness 0.1mm+.

Our processes can create a myriad of designs including thin walled, thick walled, ribbed, perforated or split hosing and tubing. In addition, we can engineer any formed extrusion profile, including bends, coils or pigtails in single or multiple planes.



The vast majority of Tenchy’s extrusions are custom fabricated to meet each customer’s unique requirements. The process typically begins in the tool room with the precision manufacture of a die and mandrel. Post-processing extrusion capabilities include services such as post curing, cutting, spooling, printing and drilling.



Physical Properties
Hardness: 50±5A
Density: 1.18±0.05g/cm³
Tensile strength : >8.0 MPa
Elongation at break: >380%
Working temperature: -60°C to 200°C
Compression set: 8% (150℃/22h)
Tear resistance (tear strength), Die B: >20KN/m



Medical / Food Grade Silicone Rubber Tubing 0.1mm 0.15mm 0.2mm Wall Thickness 0

Medical / Food Grade Silicone Rubber Tubing 0.1mm 0.15mm 0.2mm Wall Thickness 1



Material Description

● All food grade silicone products belong to environmental protection silicone. It is non-toxic, odorless, with high transparency

● Good resistance to weak acidic and alkaline solutions



Main Features

● High transparency, odorless, tasteless and non-toxic, free of BPA

● Excellent hot air resistance up to +200℃

● Excellent resistance to cold up to -60℃

● Excellent resistance to aging and weathering (UV, ozone)

● Meet FDA, RoHS requirements

● Placed at normal temperature, it does not turn yellow, spray frost, spit white, or fade



Silicone Tube Hardness

● Shore 40A to 60A



Custom Size

● The wall thickness of the product can be 0.25mm to 20mm

● Minimum size 0.5*1.2mm

● Cut-to-Length service

● Minimum order quantity: 1000 meters

● Fast sample delivery, 2-3 days finish new samples
