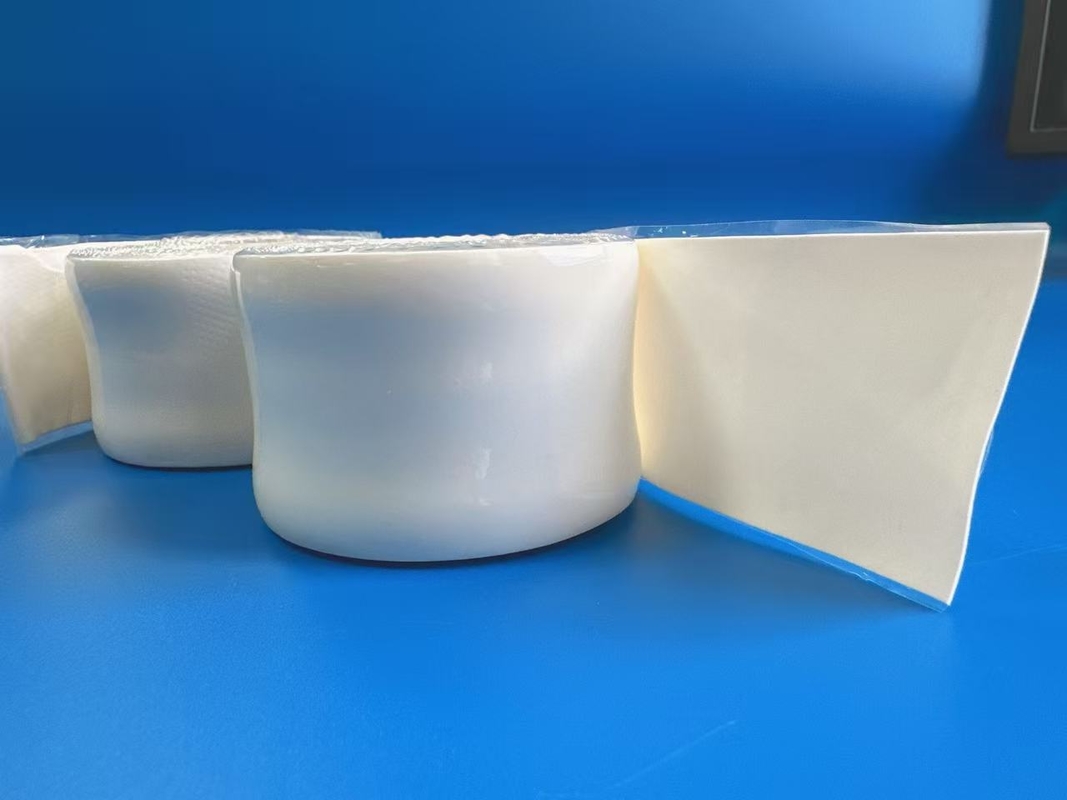

Flame-Retardant Self-Fusing Silicone Electrical Tape
Product Definition
A flame-retardant insulation material made from silicone raw rubber blended with silicon nitride carbon powder. Manufactured through mixing, extrusion, and vulcanization processes, it exhibits self-adhesive properties, high sealing performance, and electrical insulation.
Primary Applications
Electrical Systems Protection
Substations/power plants: Insulation for exposed copper parts, electrical connectors, cable joints, and switchgear busbars.
Transformers, motor lead wires, and insulation sealing for rubber/plastic cable terminals.
Engineering Sealing & Waterproofing
Construction: Sealing structural joints, underground projects, and overlaps of polymer waterproof membranes.
Municipal engineering: Tunnel joint sealing, seawater treatment equipment protection.
Panel systems: Airtight waterproofing and shock absorption for color profiled/sunlight panel joints.
Operating Environment
Temperature Range: -60°C to +180°C (stable in extreme conditions)
Weather Resistance: UV-resistant, ozone-resistant, and aging-resistant for long-term outdoor exposure.
Chemical Resistance: Anti-corrosion, pollution-resistant, and solvent-compatible for industrial environments.
Key Advantages
Self-Adhesive Properties
Non-tacky surface; fuses into a seamless layer after wrapping (waterproof/dustproof).
Residue-free removal (Doc1 Feature 3).
Physical Flexibility
High elasticity; conforms to irregular shapes.
Long-Term Protection
Flame retardancy: 94V0 (GB/T 10707-2008 compliant).
Environmental Adaptability
Suitable for high-humidity, saline, and wide-temperature-difference environments.
Product Specifications & Physical Properties
Product Specifications
| Size (W*T mm) |
Width (mm) |
Thickness (mm) |
Length (m/roll) |
| 25×0.5 |
25 |
0.5 |
5/Custom |
| 25×0.8 |
25 |
0.8 |
5/Custom |
| 50×0.5 |
50 |
0.5 |
5/Custom |
| 50×0.8 |
50 |
0.8 |
5/Custom |
| 50×1.8 |
50 |
1.8 |
Custom |
| 80×1.8 |
80 |
1.8 |
Custom |
| 100×1.8 |
100 |
1.8 |
Custom |
Colors: Red/Yellow/Green/Black/White/Blue (customizable).
Physical Properties
| Test Parameter |
Standard |
Unit |
Target (Flame-Retardant) |
| Hardness |
GB/T 531.1-2008 |
Shore A |
45±5 |
| Tensile Strength |
GB/T 528-2009 |
MPa |
≥3.0 |
| Elongation |
GB/T 528-2009 |
% |
≥400 |
| Tear Strength |
GB/T 529-2008 |
kN/m |
≥11 |
| Dielectric Strength |
GB/T 1408.1-2006 |
kV/mm |
≥25 |
| Flame Retardancy |
GB/T 10707-2008 |
Rating |
94V0 |
Installation Features
Tool-Free Application: Manual wrapping enables rapid installation.
Instant Bonding: Self-seals within minutes (Doc1 Feature 4).
