Material | Pure Silicone | Characteristics | High/low Temperature-resistant, -50-to 250 ℃ |
---|---|---|---|
Color | Multi-color Available | Elogation | >90% |
Density | 0.18 - 0.42g/cm3 | Tensile Strength | >0.3Mpa |
High Light | Liquid Foaming Rubber Transparent Sheet,0.3Mpa Rubber Transparent Sheet,Liquid Foaming Translucent Silicone Sheet |

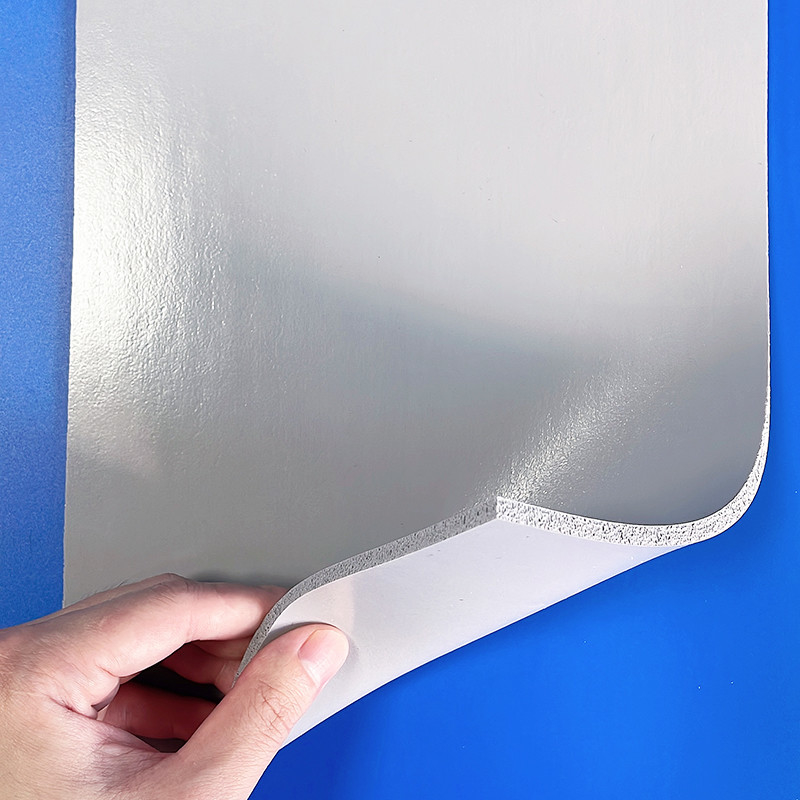

Liquid Foaming Rubber Transparent Sheet Customized Size Sheeting

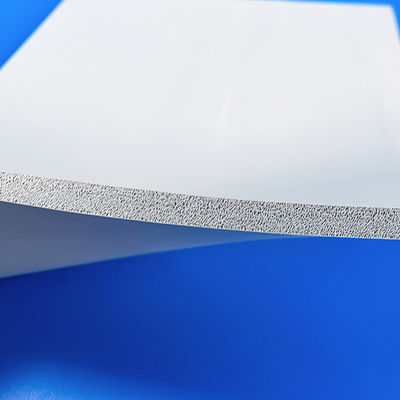

Liquid Foaming Silicone Foam Rubber Sheet Sheeting Customized Size
The TCS silicone foam sheet possesses superior compression set resistance compared to regular carbon-based foaming materials. In addition, it boasts remarkable tolerance for high and low temperatures (-60°C to 200°C), exceptional flame retardancy with a V-0 rating, and extremely low levels of smoke concentration.
Furthermore, this material showcases exceptional durability against aging and weathering, rendering it ideal for applications that require shock absorption, cushioning, sound insulation, protection, insulation, and fire protection. Its color and density can be tailored to meet specific requirements.
Silicone foam rubber sheet is a type of synthetic rubber that is made from silicone polymer. It is a versatile material that is used in a wide range of applications due to its excellent properties such as high temperature resistance, chemical resistance, non-toxicity, and high resilience.
The foam rubber sheet has a cellular structure similar to that of foam and is available in different thicknesses, widths and lengths for use in various industries. It is primarily used for sealing and gasketing applications in industries such as automotive, aerospace, medical, and electrical.
The silicone foam rubber sheet is also an ideal material for insulation due to its high thermal properties. It can be used to seal and insulate openings and joints, to protect against dust, air and moisture infiltration.
Testing Item | Unit | Test Standard | TE800-SS | TE800-S | TE800-HS | TE800-H | TE800-F | TE800-R | TE800-FC |
Color | / | / | Black | Black/Grey | Black | Black/Grey | Grey | Grey | White/Grey |
Density | g.cm-3 | ASTM D 1056 | 0.18 ± 0.03 | 0.2±0.03 | 0.25±0.03 | 0.35±0.03 | 0.42±0.03 | 0.50±0.05 | 0.42±0.03 |
Compression Stress,25% | KPa | ASTM D 1056 | 10± 3 | 20± 3 | 30± 5 | 65 ± 10 | 110± 15 | 145 ± 20 | 110± 15 |
Compression Set | % | ASTM D 1056 | ≤3.0 | ≤3.0 | ≤3.0 | ≤5.0 | s5.0 | ≤5.0 | ≤5.0 |
Tensile Strength | MPa | GB/T 528-2009 | ≥ 0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.4 | ≥0.4 | ≥ 4MPa |
Elongation | % | GB/T 528-2009 | ≥ 90 | ≥ 90 | ≥ 90 | ≥ 90 | ≥100 | ≥100 | ≥ 100 |
Water Absorption | % | ASTM D 570 | 55.0 | ≤5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤5.0 | ≤ 5.0 |
Environmental Testing | / | ROHS/REACH/TSCA | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
Burning Flame Spread Ratings | / | ASTM E162 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
Burning Smoke Concentration | / | ASTM E 662-2015 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
Burning Toxic Gas Emissions | / | SMP 800-C-2009 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
Low Temperature Bending | / | ASTM D 1056 | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass |
Dielectric Strength | KV/mm | GB/T 1695-2005 | ≥ 2.0 | ≥2.0 | ≥ 2.0 | ≥3.0 | ≥ 3.5 | ≥4 | ≥6 |
Volume Resistivity | Q ·cm | GB/T 1695-2005 | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10" | ≥ 1.0*10° | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10° |
Flame Retardant Rating | / | UL94-2013 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Advantages:
Outstanding flame retardancy: Complies with the most stringent UL, railway, and aerospace standards. Minimal flame, smoke, and toxicity while burning. Superb performance under extreme temperatures, both high and low. Resistance to compressive strain, ensuring stability at high and ambient temperatures. Highly resistant to UV and ozone, with small compression set and excellent sealing. High-quality service: 24/7 support from professional technical service engineers.
Applications:
Suitable for a wide range of applications, including new energy vehicles, power batteries, charging stations, aerospace technology, high-speed railways, telecommunications, electrical cabinets, communication equipment, lighting, drones, and military and civilian ships.
Packaging
1. Standard carton size: 35*40*50cm.
2. Customed package is available, including customed paper card, plastic bag, label, printed carton etc.
Shipping
1. Pre-order negotiation, including items, quantity, specific package requirement if you have.
2. PI confirmation, including specifications, prices, payment account, shipping cost & agent etc.
3. Payment confirmation.
4. Shipping arrangement, packages will be under strict inspection.
5. Goods loading and delivering.
Advantages of silicone material
1. Soft,flexible,pliable,tough,light.
2. No smell,no posion,eco-friendly.
3. Antiwear,water-proof,oil-proof.
4. High temp-tolerant,col-resistanr,UV-resistant,anti-acid.
